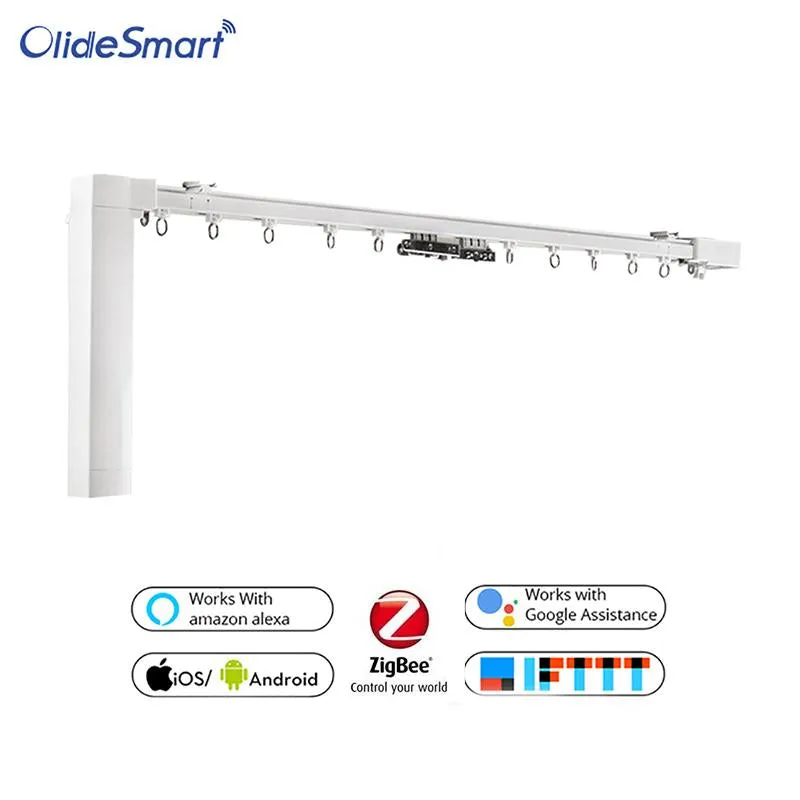

Phone Control Smart Curtain System ZigBee Gateway Version

Wireless connection: ZigBee, 2.4GHz

You can control the curtain motor through ZigBee gateway (not inclued in the set)

Notice: Need to add the ZigBee device in TuyaSmart APP at first.Then add the curtain device. Details as below.

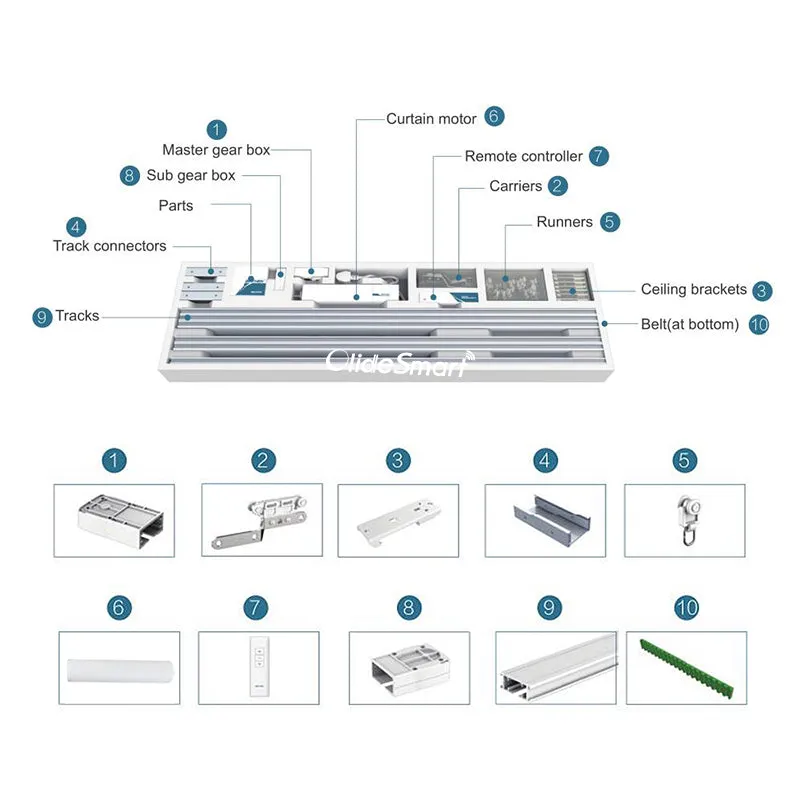

Package contents

1.Motor X 1
2.Remote X 1
3.Tracks (can be customized based on your window length)
4.Mounting accessories
5.English Instruction

How to choose the length of tracks?

*2.2m track is suitable for 1.00m~2.16m curtains
*3.2m track is suitable for 2.16m~3.16m curtains
*4.2m track is suitable for 3.16m~4.16m curtains
*5.2m track is suitable for 4.16m~5.16m curtains
*6.2m track is suitable for 5.16m~6.16m curtains
*7.2m track is suitable for 6.16m~7.16m curtains
*8.2m track is suitable for 7.16m~8.16m curtains

Advantages Of Smart Curtain

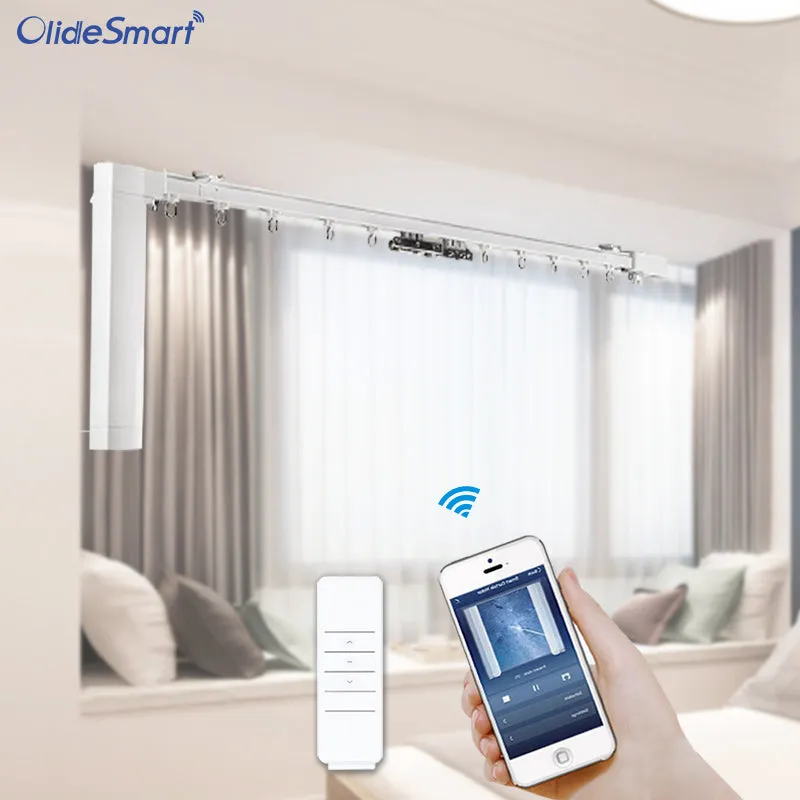

• Smart Device Control By Mobile Phone, Alexa,Echo

• Excellent Choice For Disabled/Elderly

• Enjoy A Lazy Morning

• Set Timers And Holiday Mode

• Manual Control When Power Off

Smart Curtain System Features

• 【Silent Operation】Super quiet Smart Wifi motorized curtain system，no worry about the noises.
• 【Smart Control】Voice control,can work with Amazon Alexa and Google Home.Also can be controlled by Tuya APP.
• 【Easy installation】With detailed instructions and the installation video,you can start a DIY experience.
• 【Light trigger mode】Manually Pull to trigger the motor then it will operate automatically.
• 【Flexible length adjusting】Can adjust the length of track to meet you needs.

Installation For Smart Curtain System

• Single track and dual track installation

• Ceiling installation and wall installation

Technical Specifications

FAQ

Question: Where is the reserved socket?

Auswer:The socket is reserved on the wall near the motor (the motor has its own power cord 1 meter long), as shown in the figure below. The reserved position shall be prevented from being blocked by the motor.

Question: How many ways do curtains open and close?

Auswer: Two kinds, single or dual.

              Users can choose single or dual opening (the most common is dual opening) according to their personal needs.

Question: How many does the curtain box need to be reserved?

Auswer: 10cm reserved for single motor and 20cm reserved for dual motor.

Question: How to determine the track length?

Auswer: Full wall: track length = L- 4cm;

              Not full wall: track length = L 60cm
